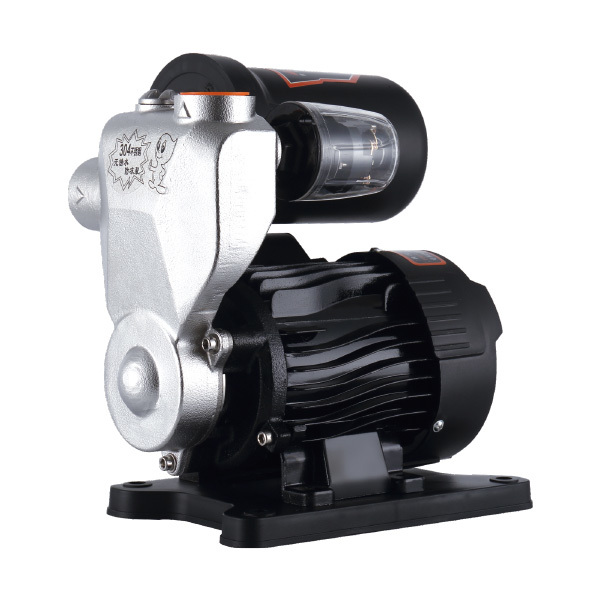

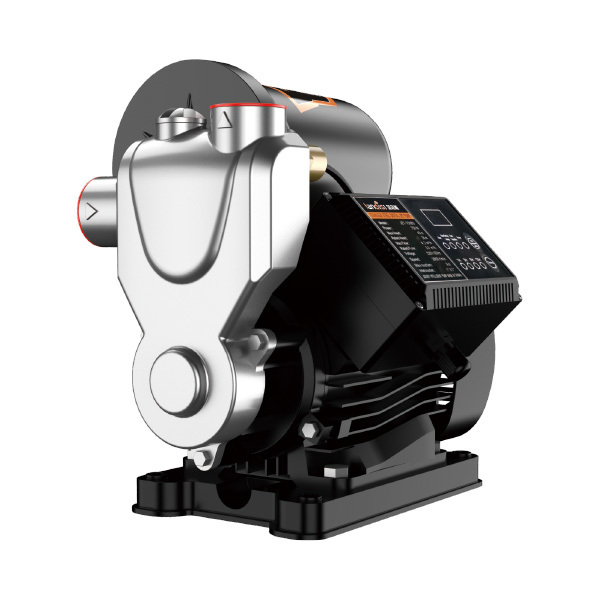

WZB-QX Intelligent Self Priming Water Pump

Keywords:

waterpump

Category:

BOOSTER PUMP

Product Consultation:

+86-576-86273666

Messages

Details

This Intelligent Self-priming booster pump is an intelligent automatic water supply system which combined with motor, pump body, pressure tank, pressure switch, flow sensor and electronic controller. The electronic controller can start or shut down the pump at the right time according to the change of pressure and flow rate in the pipeline, providing customers with a stable, safe and comfortable water environment. It’s widely used in the water supply system of apartment house, automatic water supply system of building water pressurization , and also suitable for hotels, company and other public occasions.

PRODUCT DESCRIPTION

Model No.: WZB-QX

Pump Head: Iron Cast

Impeller: Brass

Shaft: Stainless steel

Motor: 180°C copper wire

Liquid: Clean Water

Liquid Temperature: 0-90C

Ambient Temperature: 0-45C

Usage: Water Pressurization for family life, water lifting from wells, tap water pressurization, garden irrigation, especially suitable for pressurization of water heater pipelines with insufficient water pressure.

PRODUCT FUNCTION

Fully Automatic

Automatically stop after 6s without water flow;Automatically starts when there is water flow.

Dry-running Protection

With overheat protection device to avoid bearings and shaft damaged in dry-running status.

Delay Start

When power on, delay 3s to start to protect the pump and personal safety.

Machine Lock protection

Automatically run 8s to clear the dirty waters every 72 hours

PRODUCT SPECIFICATIONS

Model	Power W	Max.Flow m³/h	Rated. Flow m³/h	Max.Head m	Rated.Head m	Volt V	Inlet/Outlet
WZB-200QX	200	2	1	25	13	220	1"
WZB-300QX	300	2	1	30	15	220	1"
WZB-400QX	400	2	1	35	18	220	1"
WZB-600QX	600	3	1	40	20	220	1"
WZB-800QX	800	3.5	1.7	45	22	220	1"
WZB-1100QX	1100	6	3	50	25	220	1"
WZB-1500QX	1500	6	3	60	30	220	1"
